微信开发之springmvc mybatis项目结构搭建的java代码详解

这篇文章主要为大家详细介绍了微信开发准备第二步，springmvc和mybatis项目结构的搭建，具有一定的参考价值，感兴趣的小伙伴们可以参考一下

前面一篇有说道如何在MyEclipse中搭建maven项目，这里将继续介绍如何在搭建好的基础maven项目中引入我们常用的javaweb框架——SpringMVC！

①在建立好的maven项目中的pom.xml文件引入依赖，代码如下：<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>wechat.cuiyongzhi.com</groupId> <artifactId>wechat</artifactId> <packaging>war</packaging> <version>0.0.1-SNAPSHOT</version> <name>wechat</name> <url>http://maven.apache.org</url> <dependencies><!-- spring --><dependency><groupId>org.springframework</groupId><artifactId>spring-test</artifactId><version>3.2.0.RELEASE</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-webmvc</artifactId><version>3.2.0.RELEASE</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-core</artifactId><version>3.2.0.RELEASE</version></dependency><!-- mybatis --><dependency><groupId>org.mybatis</groupId><artifactId>mybatis</artifactId><version>3.1.1</version></dependency><dependency><groupId>org.mybatis</groupId><artifactId>mybatis-spring</artifactId><version>1.1.1</version></dependency><!-- mysql --><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId><version>5.1.21</version></dependency><!-- junit测试 --><dependency><groupId>junit</groupId><artifactId>junit</artifactId><version>4.11</version><scope>test</scope></dependency><!-- mysql阿里连接池druid --><dependency><groupId>com.alibaba</groupId><artifactId>druid</artifactId><version>0.2.9</version></dependency><!-- spring aop包 --><dependency><groupId>org.aspectj</groupId><artifactId>aspectjweaver</artifactId><version>1.7.1</version></dependency><!-- json包 --><dependency><groupId>com.alibaba</groupId><artifactId>fastjson</artifactId><version>1.2.7</version></dependency><!-- 文件上传包 --><dependency><groupId>commons-fileupload</groupId><artifactId>commons-fileupload</artifactId><version>1.2.2</version></dependency><!--servlet包 --><dependency><groupId>javax.servlet</groupId><artifactId>servlet-api</artifactId><version>3.0-alpha-1</version></dependency><dependency><groupId>javax.servlet.jsp</groupId><artifactId>jsp-api</artifactId><version>2.1</version><scope>provided</scope></dependency><dependency><groupId>javax.servlet</groupId><artifactId>jstl</artifactId><version>1.2</version></dependency><!-- 日志包 --><dependency><groupId>log4j</groupId><artifactId>log4j</artifactId><version>1.2.17</version></dependency> </dependencies> <build><finalName>wechat</finalName> </build></project>②修改项目路径下的web.xml文件如下：<?xml version="1.0" encoding="UTF-8"?><web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:web="http://java.sun.com/xml/ns/javaee" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd http://www.springframework.org/schema/websocket http://www.springframework.org/schema/websocket/spring-websocket.xsd" id="WebApp_ID" version="3.0"> <display-name>com.cuiyongzhi.wechat</display-name> <context-param><param-name>contextConfigLocation</param-name><param-value>classpath:spring.xml,classpath:spring-mybatis.xml</param-value><!-- ,classpath:spring-quartz.xml 用于做任务调度 任务定时都可以 --> </context-param> <context-param><param-name>log4jConfigLocation</param-name><param-value>classpath:log4j.properties</param-value> </context-param> <listener><listener-class>org.springframework.web.util.Log4jConfigListener</listener-class> </listener> <context-param><param-name>spring.profiles.active</param-name><param-value>dev</param-value> </context-param> <context-param><param-name>spring.profiles.default</param-name><param-value>dev</param-value> </context-param> <context-param><param-name>spring.liveBeansView.mbeanDomain</param-name><param-value>dev</param-value> </context-param> <filter><filter-name>encodingFilter</filter-name><filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class><init-param><param-name>encoding</param-name><param-value>UTF-8</param-value></init-param><init-param><param-name>forceEncoding</param-name><param-value>true</param-value></init-param> </filter> <listener><description>spring监听器</description><listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!-- 防止内存溢出 --> <listener><listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class> </listener> <servlet><description>spring mvc servlet</description><servlet-name>springMvc</servlet-name><servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class><init-param><description>spring mvc 配置文件</description><param-name>contextConfigLocation</param-name><param-value>classpath:spring-mvc.xml</param-value></init-param><load-on-startup>1</load-on-startup> </servlet> <servlet><servlet-name>interface_url-init_servlet</servlet-name><servlet-class>com.cuiyongzhi.web.start.InterfaceUrlIntiServlet</servlet-class><load-on-startup>1</load-on-startup> </servlet> <servlet-mapping><servlet-name>springMvc</servlet-name><url-pattern>/</url-pattern> </servlet-mapping><welcome-file-list><welcome-file>/index.jsp</welcome-file> </welcome-file-list> <session-config><session-timeout>300</session-timeout> </session-config><error-page><error-code>404</error-code><location>/WEB-INF/error/error.jsp</location> </error-page><error-page><error-code>500</error-code><location>/WEB-INF/error/error.jsp</location> </error-page><servlet-mapping><servlet-name>default</servlet-name><url-pattern>*.css</url-pattern> </servlet-mapping><servlet-mapping><servlet-name>default</servlet-name><url-pattern>*.gif</url-pattern> </servlet-mapping><servlet-mapping><servlet-name>default</servlet-name><url-pattern>*.jpg</url-pattern> </servlet-mapping><servlet-mapping><servlet-name>default</servlet-name><url-pattern>*.js</url-pattern> </servlet-mapping><servlet-mapping><servlet-name>default</servlet-name><url-pattern>*.xhtml</url-pattern> </servlet-mapping><servlet-mapping><servlet-name>default</servlet-name><url-pattern>*.html</url-pattern> </servlet-mapping><filter><filter-name>DruidWebStatFilter</filter-name><filter-class>com.alibaba.druid.support.http.WebStatFilter</filter-class><init-param><param-name>exclusions</param-name><param-value>*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*</param-value></init-param> </filter> <filter-mapping><filter-name>DruidWebStatFilter</filter-name><url-pattern>/*</url-pattern> </filter-mapping> <servlet><servlet-name>DruidStatView</servlet-name><servlet-class>com.alibaba.druid.support.http.StatViewServlet</servlet-class><init-param><!-- 允许清空统计数据 --><param-name>resetEnable</param-name><param-value>true</param-value></init-param><init-param><!-- 用户名 --><param-name>loginUsername</param-name><param-value>cuiyongzhi</param-value></init-param><init-param><!-- 密码 --><param-name>loginPassword</param-name><param-value>123456</param-value></init-param> </servlet> <servlet-mapping><servlet-name>DruidStatView</servlet-name><url-pattern>/druid/*</url-pattern> </servlet-mapping> <!-- 访问监控页面：http://ip：port/projectName/druid/index.html --><jsp-config><jsp-property-group><display-name>jspConfiguration</display-name><url-pattern>*.jsp</url-pattern><el-ignored>false</el-ignored><scripting-invalid>false</scripting-invalid><include-prelude>/WEB-INF/common/head.jsp</include-prelude></jsp-property-group> </jsp-config> </web-app>③添加数据库配置信息，这里项目配置的数据库为MySQL，在 resources下新建config.properties配置文件，设置如下：validationQuery=SELECT 1jdbc_url=jdbc:mysql://127.0.0.1:3306/wechat?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNulljdbc_username=root jdbc_password=123456789④在 resources下新建spring.xml配置文件，设置如下：<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xsi:schemaLocation="http://www.springframework.org/schema/beanshttp://www.springframework.org/schema/beans/spring-beans-3.0.xsdhttp://www.springframework.org/schema/contexthttp://www.springframework.org/schema/context/spring-context-3.0.xsd"> <!-- 引入属性文件 --> <context:property-placeholder location="classpath:config.properties" /> <!-- 自动扫描(自动注入) --> <context:component-scan base-package="com.cuiyongzhi.web.service" /> <context:component-scan base-package="com.cuiyongzhi.wechat.*" /></beans>⑤在 resources下新建spring-mvc.xml配置文件，设置如下：<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p" xmlns:context="http://www.springframework.org/schema/context" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd"><!-- 自动扫描controller包下的所有类，使其认为spring mvc的控制器 --> <context:component-scan base-package="com.cuiyongzhi.web.controller" /><!-- 避免IE执行AJAX时,返回JSON出现下载文件 --> <bean id="mappingJacksonHttpMessageConverter">⑥在 resources下新建spring-mybatis.xml配置文件，设置如下：<?xml version="1.0" encoding="UTF-8"?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:aop="http://www.springframework.org/schema/aop" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-3.0.xsdhttp://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-3.0.xsd"><!-- 配置数据源 --> <bean name="dataSource">⑦在 resources下新建log4j.properties配置文件，用于日志的输出等级以及输出位置设置，设置如下：

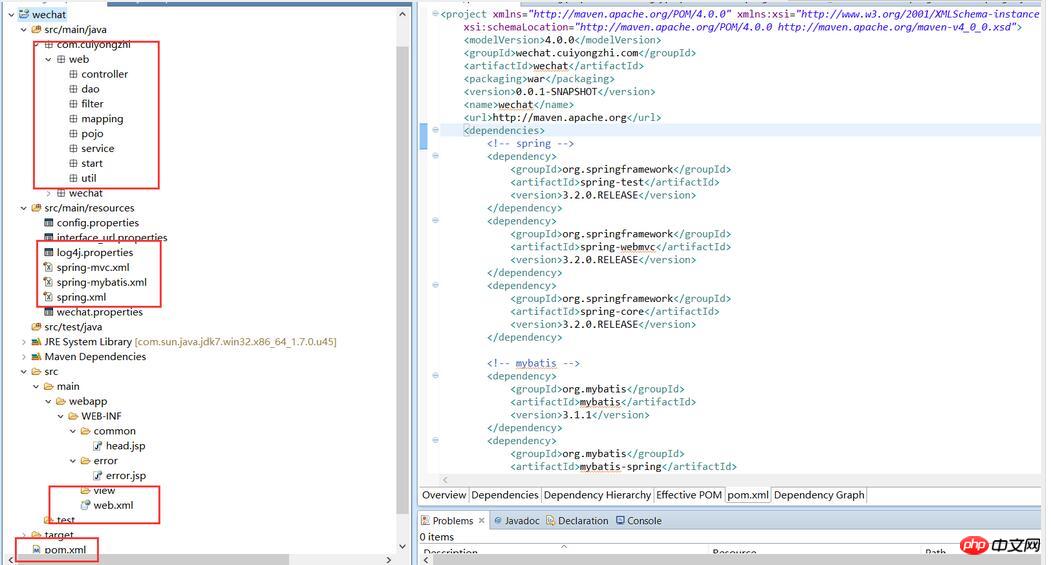

到这里springmvc+mybatis的基本配置文件基本就完成了，大致的项目结构如下：

本篇主要以代码示例为主，基本的的项目搭建就记录到这里，下一篇我将简述在这个框架下的一些简单应用，感谢你的翻阅，如有疑问可以讨论！以上就是微信开发之springmvc mybatis项目结构搭建的java代码详解的详细内容，更多请关注小潘博客其它相关文章！
