asp.net微信开发中永久素材管理介绍

这篇文章讲述asp.net微信开发中永久素材管理介绍的相关内容，需要的朋友可以参考下

除了3天就会失效的临时素材外，开发者有时需要永久保存一些素材，届时就可以通过本接口新增永久素材。

最近更新，永久图片素材新增后，将带有URL返回给开发者，开发者可以在腾讯系域名内使用（腾讯系域名外使用，图片将被屏蔽）。

请注意：

1、新增的永久素材也可以在公众平台官网素材管理模块中看到

2、永久素材的数量是有上限的，请谨慎新增。图文消息素材和图片素材的上限为5000，其他类型为1000

3、素材的格式大小等要求与公众平台官网一致。具体是，图片大小不超过2M，支持bmp/png/jpeg/jpg/gif格式，语音大小不超过5M，长度不超过60秒，支持mp3/wma/wav/amr格式

4、调用该接口需https协议

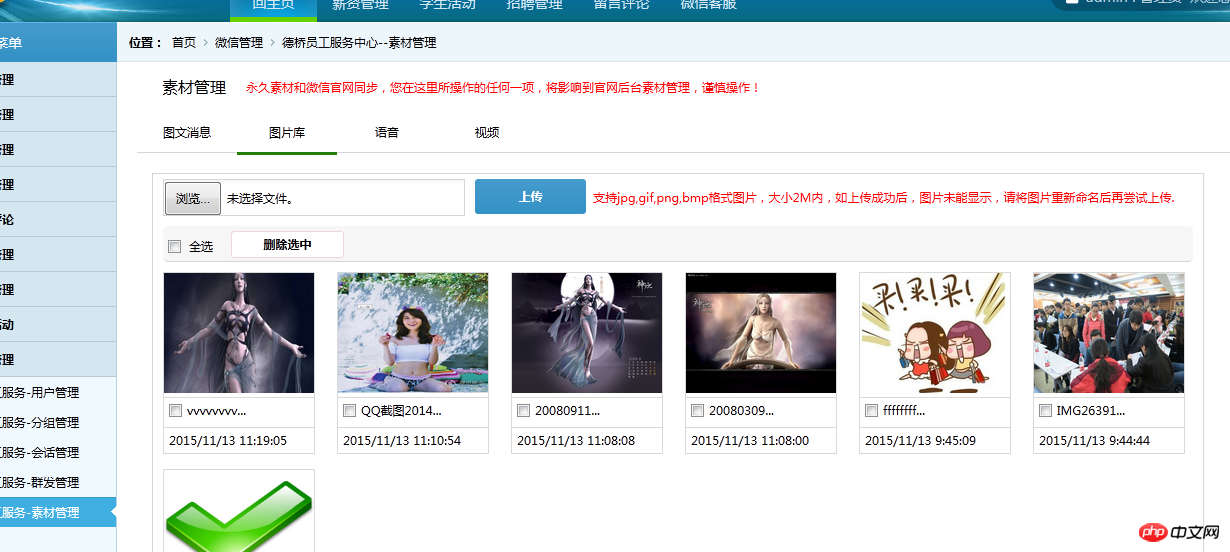

先来看我自己自定义的后台永久素材管理效果图，如下：

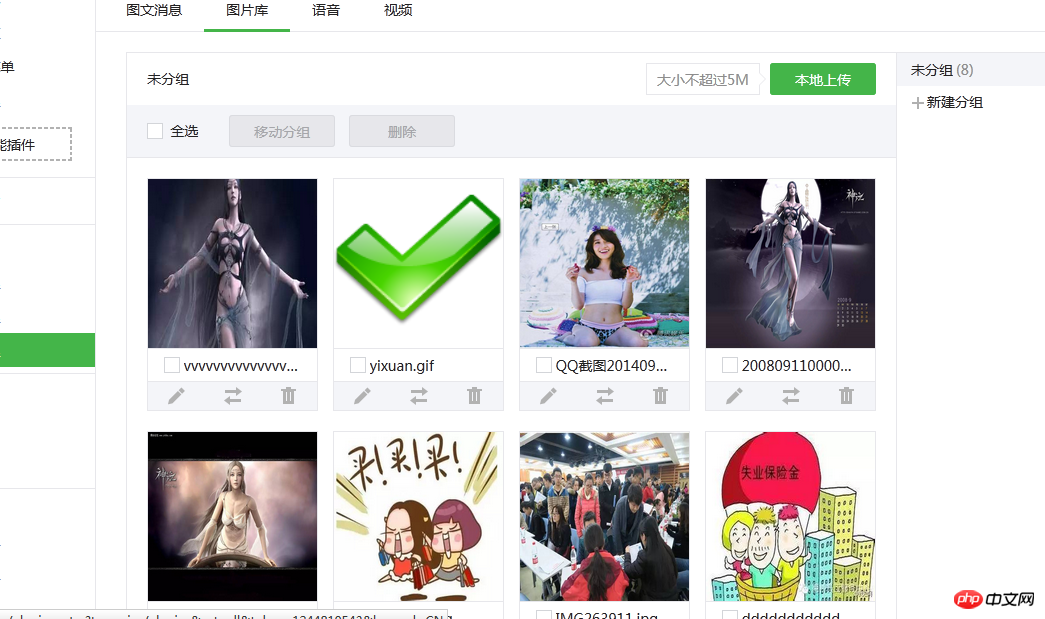

再看看微信官网后台上的显示界面，同步的哦！

首先我们来分析一下步骤：第一步：如果想让图片在自己的页面显示，首先得先建个实体类吧，用来存储素材的信息吧/// <summary> /// 微信永久素材实体类，用于保存永久素材上传至微信服务器后返回的数据 /// </summary> public class WxSuCaiInfo { public int SuCaiId { get; set; }//自增列序号 public string SuCaiUrl { get; set; }// 存储文件名 public string SuCaiType { get; set; }//素材类型，可分为image,voice,video,thumb(缩略图) public string SuCaiTitle { get; set; }//图文消息的标题 public string SuCaiDigest { get; set; }//图文消息的摘要 public string SuCaiauthor { get; set; }//图文消息的作者 public string SuCaishow_cover_pic { get; set; }//图文消息是否显示封面.保存0或1 public string SuCaicontent { get; set; }//图文消息的正文内容 public string SuCaicontent_source_url { get; set; }//图文消息的原文链接 public string media_ID { get; set; }//上传至微信服务器后，返回的永久mediaID public string Url { get; set; }//上传至微信服务器后，返回的图片URL，仅图片才会返回此属性 public string uploadDate { get; set; }//上传日期时间 }第二步：上传图片至微信服务器，成功后将返回的media_id和url两个字段数据和其他字段数据一并保存到本地服务器，上传的代码如下： /// <summary> /// 上传图片至微信服务器,并且本地也保存一份 /// </summary> /// <param name="sender"></param> /// <param name="e"></param> protected void LinBtnUploadImg_Click(object sender, EventArgs e) {if (this.FileUploadImage.HasFile){string fileContentType = FileUploadImage.PostedFile.ContentType;if (fileContentType == "image/bmp" || fileContentType == "image/gif" || fileContentType == "image/png" || fileContentType == "image/x-png" || fileContentType == "image/jpeg"|| fileContentType == "image/pjpeg"){int fileSize = this.FileUploadImage.PostedFile.ContentLength;if (fileSize <= 2097152){string fileName = this.FileUploadImage.PostedFile.FileName;// 客户端文件路径string filepath = FileUploadImage.PostedFile.FileName; //得到的是文件的完整路径,包括文件名，如：C:Documents and SettingsAdministratorMy DocumentsMy Pictures20022775_m.jpg//string filepath = FileUpload1.FileName;//得到上传的文件名20022775_m.jpgstring filename = filepath.Substring(filepath.LastIndexOf("\") + 1);//20022775_m.jpgstring serverpath = Server.MapPath("~/WeiXinImg/") + filename;//取得文件在服务器上保存的位置C:InetpubwwwrootWebSite1images20022775_m.jpg//把图片上传至本地服务器this.FileUploadImage.PostedFile.SaveAs(serverpath);//将上传的文件另存为//上传图片素材至微信服务器,永久保存WeiXinServer wxs = new WeiXinServer();///从缓存读取accesstokenstring Access_token = Cache["Access_token"] as string;if (Access_token == null){//如果为空，重新获取Access_token = wxs.GetAccessToken();//设置缓存的数据7000秒后过期Cache.Insert("Access_token", Access_token, null, DateTime.Now.AddSeconds(7000), System.Web.Caching.Cache.NoSlidingExpiration);}string Access_tokento = Access_token.Substring(17, Access_token.Length - 37);string url = string.Format("http://api.weixin.qq.com/cgi-bin/material/add_material?access_token={0}&type={1}", Access_tokento,"image");try{string res = HttpUploadFile(url, serverpath);//判断res结果集里面是否包含media_idif (res.Contains("media_id")){//如果能进行到这里，那说明图片已经上传至微信服务器，是永久素材哦，//开始解析json串，使用前需要引用Newtonsoft.json.dll文件JObject jsonObj = JObject.Parse(res);//图片上传成功后，返回的是两个字段，media_id和url//将两个字段开始存入数据库，保存数据，方便获取列表的时候直接从本地服务器读取WxSuCaiInfo wsc = new WxSuCaiInfo();wsc.SuCaiUrl = filename;//注意，这里保存的图片名称wsc.SuCaiType = "image";//文件类型wsc.media_ID = jsonObj["media_id"].ToString();//这个属性保存的是微信返回的media_idwsc.Url = jsonObj["url"].ToString();//这个属性保存的才是微信返回的urlwsc.uploadDate = System.DateTime.Now.ToString();//记录当前文件上传日期时间//存入数据库WxSuCaiService wscs = new WxSuCaiService();int num = wscs.AddWxSuCaiInfo(wsc);if (num > 0){Response.Write("<script>alert('上传图片素材成功！');location='WxSuCaiMannageImageList.aspx';</script>");}else{Response.Write("<script>alert('上传图片素材失败！');location='WxSuCaiMannageImageList.aspx';</script>");}}}catch(Exception ex){Response.Write(ex.Message.ToString());}}else{Response.Write("<script>alert('上传文件不能大于2M！')</script>");}}else{Response.Write("<script>alert('只支持BMP,GIF,PNG,JPG,JPEG格式的图片！')</script>");}}else{Response.Write("<script>alert('请选择图片！')</script>");} }走到这其实效果已经出来了，接下来看最后一步就是删除选中的素材，删除微信远程服务器的数据--再删除本地服务器的数据，有人问难道这个还有顺序？其实你可以想象，如果微信服务器的图片没有删除成功，你先把本地服务器的图片删除了，那就和官网同步不了了。第三步：删除素材 /// <summary> /// 全选全不选 /// </summary> /// <param name="sender"></param> /// <param name="e"></param> protected void CheckAll_CheckedChanged(object sender, EventArgs e) {foreach (DataListItem item in this.DLSuCaiImageList.Items){CheckBox checkIn = item.FindControl("CheckIn") as CheckBox;checkIn.Checked = CheckAll.Checked;} } /// <summary> /// 删除选中项 /// </summary> /// <param name="sender"></param> /// <param name="e"></param> protected void LinkBtnDeleteSelected_Click(object sender, EventArgs e) {Boolean ischeck = false;foreach (DataListItem item in this.DLSuCaiImageList.Items){CheckBox checkIn = item.FindControl("CheckIn") as CheckBox;if (checkIn.Checked){ischeck = true;Label lbSuCaiId = item.FindControl("lbSuCaiId") as Label;Label lbSuCaiUrl = item.FindControl("lbSuCaiUrl") as Label;Label lbmedia_ID = item.FindControl("lbmedia_ID") as Label;//删除微信服务器上的图片WeiXinServer wxs = new WeiXinServer();string res = "";///从缓存读取accesstokenstring Access_token = Cache["Access_token"] as string;if (Access_token == null){//如果为空，重新获取Access_token = wxs.GetAccessToken();//设置缓存的数据7000秒后过期Cache.Insert("Access_token", Access_token, null, DateTime.Now.AddSeconds(7000), System.Web.Caching.Cache.NoSlidingExpiration);}string Access_tokento = Access_token.Substring(17, Access_token.Length - 37);string posturl = "https://api.weixin.qq.com/cgi-bin/material/del_material?access_token=" + Access_tokento;//POST数据例子： POST数据例子：{"media_id":MEDIA_ID}string media_id = lbmedia_ID.Text.ToString();string postData = "{"media_id":"" + media_id + ""}";res = wxs.GetPage(posturl, postData);if (res.Contains("errcode")){//开始解析json串，使用前需要引用Newtonsoft.json.dll文件JObject jsonObj = JObject.Parse(res);if (jsonObj["errcode"].ToString().Equals("0")){///获取本地服务器的路径string serverPathss = Server.MapPath("~/WeiXinImg/") + lbSuCaiUrl.Text.ToString();//验证本地服务的路径是否存在该图片if (File.Exists(serverPathss)){//如果存在就删除File.Delete(serverPathss);}WxSuCaiService wscs = new WxSuCaiService();//通过media_id删除本地服务器数据库记录int num = wscs.DeleteWxSuCaiInfo(lbmedia_ID.Text.ToString());if (num > 0){Response.Write("<script>alert('图片素材删除成功！');location='WxSuCaiMannageImageList.aspx';</script>");}else{Response.Write("<script>alert('微信服务器图片删除成功！本地服务器图片素材删除失败！');location='WxSuCaiMannageImageList.aspx';</script>");}}}}}if (!ischeck){ScriptManager.RegisterClientScriptBlock(this.Page, this.GetType(), "", "alert('请先选中删除项！！！')", true);return;} }最后是页面的代码一并奉上，大家仔细研究。<!DOCTYPE html><html xmlns="http://www.w3.org/1999/xhtml"><head runat="server"><meta http-equiv="Content-Type" content="text/html; charset=utf-8"/> <title></title> <link href="css/style.css" rel="Stylesheet" type="text/css" /> <style type="text/css"> .meun { width:1100px; height:40px; margin-left:20px; line-height:40px; margin-top:10px;border-bottom:1px solid #d6d6d6; } .meun ul { padding:0px; margin:0px; }.meun ul li{ float:left; width:100px; text-align:center;list-style:none; }.meun ul li:hover{ border-bottom:3px solid #ecd9df; cursor:pointer; } a:hover { color:#000; } .checkedstyle { border-bottom:3px solid #208008; } .meun_imglist { width:1050px; min-height:300px; border:1px solid #d6d6d6; margin-top:20px; margin-left:35px; margin-bottom:30px; } .uploadstyle { width:300px; background-image:url('images/inputbg.gif'); background-repeat:repeat-x; height:35px; border:1px solid #d6d6d6; float:left; margin-bottom:10px; line-height:35px; } .CheckAll { float:left; padding:5px; } .CheckIn { float:left; padding:2px; } .DLSuCaiImageList { margin-top:10px; margin-left:10px; } </style></head><body> <form id="form1" runat="server"> <p>

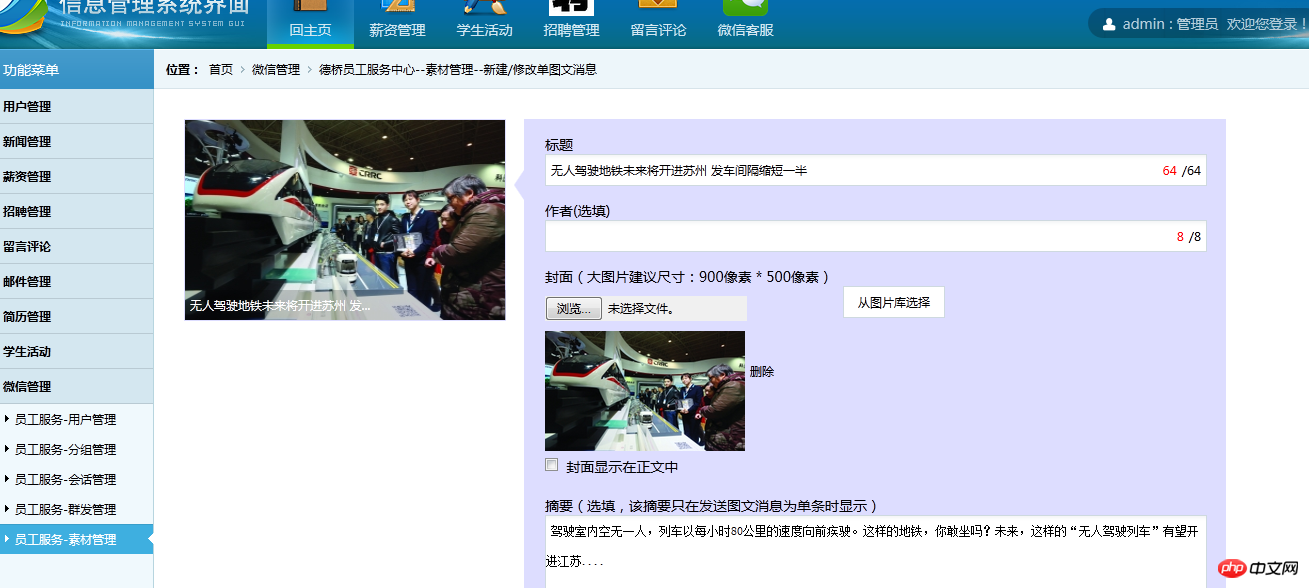

其他素材上传都类似，就不一一介绍了。新建图文素材界面如下：

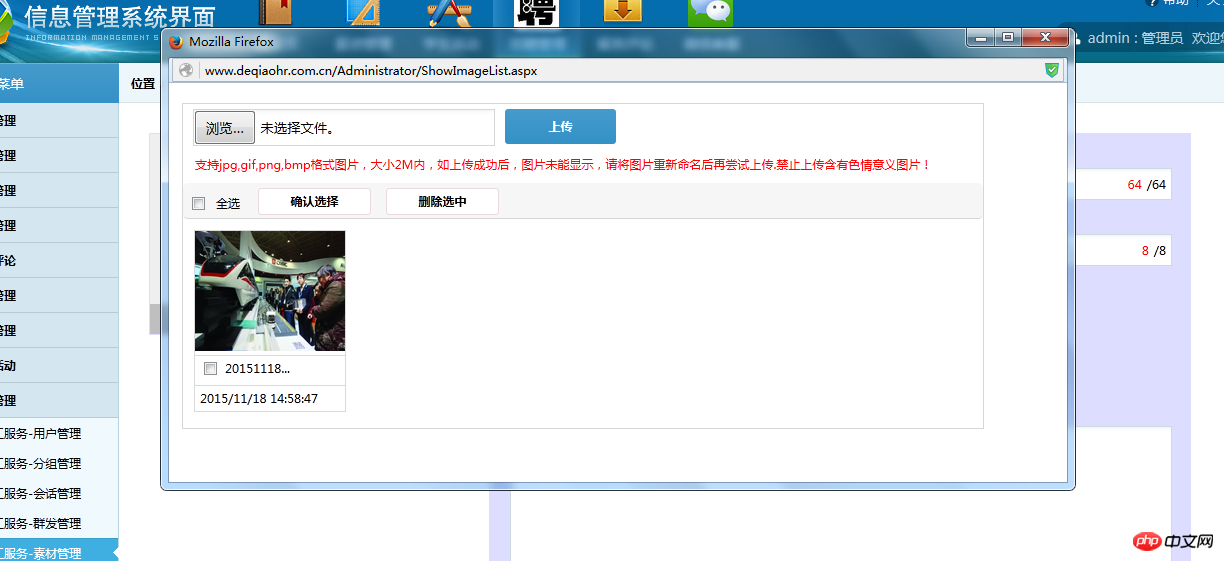

从图片库选择图片素材如下：

这是就是从已上传过的图片库中选择的，和图片素材管理界面的功能基本相似，只不过多了一个确认选择的按钮，因为确认选择了之后，要关闭本页，回到新建图文页面，主要代码： /// <summary> /// 确认选择，选中之后，跳转至新建图文页面 /// </summary> /// <param name="sender"></param> /// <param name="e"></param> protected void LinkBtnSubMitSelected_Click(object sender, EventArgs e) {Boolean bools = false;int num = 0;foreach (DataListItem item in this.DLSuCaiImageList.Items){CheckBox checkIn = item.FindControl("CheckIn") as CheckBox;if (checkIn.Checked){num += 1;bools = true;}}if (!bools){ScriptManager.RegisterClientScriptBlock(this.Page, this.GetType(), "", "alert('请选择一个图片素材！！！')", true);return;}if (num >= 2){ScriptManager.RegisterClientScriptBlock(this.Page, this.GetType(), "", "alert('您只能选择一个图片素材！');", true);return;}else{foreach (DataListItem item in this.DLSuCaiImageList.Items){CheckBox checkIn = item.FindControl("CheckIn") as CheckBox;if (checkIn.Checked){///获取选中图片media_idLabel lbmedia_ID = item.FindControl("lbmedia_ID") as Label;Session["imgmedia_id"] = lbmedia_ID.Text.ToString();Response.Write("<script>alert('已选择！');window.opener.location.reload();window.close();</script>");}}} }新建图文的页面在接收的时候可以这样： if (Session["imgmedia_id"] != null){WxSuCaiService wscs = new WxSuCaiService();WxSuCaiInfo wscinfo = wscs.GetWxSuCaiInfo(Session["imgmedia_id"].ToString());if(wscinfo!=null){this.ImgTuWen.ImageUrl = "~/WeiXinImg/" + wscinfo.SuCaiUrl.ToString();this.ImgTuWen2.ImageUrl = "~/WeiXinImg/" + wscinfo.SuCaiUrl.ToString();this.ImgTuWen2.Visible = true;Session["imgmedia_id"] = wscinfo.media_ID.ToString();//图片的media_idSession["fileNameimg"] = wscinfo.SuCaiUrl.ToString();//图片的文件名称}}最后新建图文信息的效果图如下：

官方后台如下：

关于编辑图文信息的关键代码如下： /// <summary> /// 绑定事件 /// </summary> /// <param name="sender"></param> /// <param name="e"></param> protected void DLMpNewsList_ItemDataBound(object sender, DataListItemEventArgs e) {if(e.Item.ItemType==ListItemType.Item||e.Item.ItemType==ListItemType.AlternatingItem){LinkButton LinkBtnDeleteSucai = e.Item.FindControl("LinkBtnDeleteSucai") as LinkButton;LinkBtnDeleteSucai.Attributes.Add("OnClick","return confirm('您确定删除该图文素材？？？删除后将和微信官网同步删除！！')");HyperLink HyperLinkEdit = e.Item.FindControl("HyperLinkEdit") as HyperLink;HyperLinkEdit.Attributes.Add("OnClick", "return confirm('即将进入编辑模式！！是否执行下一步操作？？')");Label lbmedia_ID = e.Item.FindControl("lbmedia_ID") as Label;HyperLinkEdit.NavigateUrl = "WxNewTuWen.aspx?media_id=" + lbmedia_ID.Text.ToString();//把图文消息的media_id传参到新建图文界面} }

新建图文页面关键代码如下： if(!Page.IsPostBack){///编辑模式if (Request.QueryString["media_id"] != null){string media_id = Request.QueryString["media_id"].ToString();Session["sucaimedia_id"] = media_id;WxSuCaiService wscs = new WxSuCaiService();WxSuCaiInfo wscinfo = wscs.GetWxSuCaiInfo(media_id);if (wscinfo != null){this.txttuwen_title.Value = wscinfo.SuCaiTitle.ToString();if (wscinfo.SuCaiTitle.ToString().Length > 15){this.biaoti_yulan.InnerText = wscinfo.SuCaiTitle.ToString().Substring(0, 15) + "...";}else{this.biaoti_yulan.InnerText = wscinfo.SuCaiTitle.ToString();}this.txttuwen_author.Value = wscinfo.SuCaiauthor.ToString();this.txtzhaiyao.InnerText = wscinfo.SuCaiDigest.ToString();this.ImgTuWen.ImageUrl = "~/WeiXinImg/" + wscinfo.SuCaiUrl.ToString();this.ImgTuWen2.ImageUrl = "~/WeiXinImg/" + wscinfo.SuCaiUrl.ToString();this.ImgTuWen2.Visible = true;Session["imgmedia_id"] = wscinfo.SuCaithumb_media_id.ToString();this.LinkBtnDeleteImg.Visible = true;if (!String.IsNullOrWhiteSpace(wscinfo.SuCaicontent_source_url.ToString())){this.txtYuanWenUrl.Text = wscinfo.SuCaicontent_source_url.ToString();this.txtYuanWenUrl.Visible = true;this.CheckYuanWen.Checked = true;}this.txtYuanWenUrl.Text = wscinfo.SuCaicontent_source_url.ToString();this.tbContent.InnerText = wscinfo.SuCaicontent.ToString();if (wscinfo.SuCaishow_cover_pic.ToString().Equals("1")){this.CheckFengMianShow.Checked = true;}else{this.CheckFengMianShow.Checked = false;}}}}

编辑提交关键代码如下：/// <summary> /// 保存图文素材和修改按钮公用 /// </summary> /// <param name="sender"></param> /// <param name="e"></param> protected void LinkBtnSaveYongjiu_Click(object sender, EventArgs e) {//非空验证if (String.IsNullOrWhiteSpace(this.txttuwen_title.Value.ToString())){ScriptManager.RegisterClientScriptBlock(this.Page, this.GetType(), "", "alert('请输入图文标题！');", true);return;}if (this.ImgTuWen2.ImageUrl.ToString().Equals("")){ScriptManager.RegisterClientScriptBlock(this.Page, this.GetType(), "", "alert('必须上传一张图片！');", true);return;}if (String.IsNullOrWhiteSpace(this.tbContent.InnerText.ToString())){ScriptManager.RegisterClientScriptBlock(this.Page, this.GetType(), "", "alert('请输入正文内容！');", true);return;}//对各项进行赋值WeiXinServer wxs = new WeiXinServer();///从缓存读取accesstokenstring Access_token = Cache["Access_token"] as string;if (Access_token == null){//如果为空，重新获取Access_token = wxs.GetAccessToken();//设置缓存的数据7000秒后过期Cache.Insert("Access_token", Access_token, null, DateTime.Now.AddSeconds(7000), System.Web.Caching.Cache.NoSlidingExpiration);}string Access_tokento = Access_token.Substring(17, Access_token.Length - 37);//根据session判断media_id是否为空，也可根据request.queryString["media_id"]进行判断是否为空if (Session["sucaimedia_id"] != null){//执行更新操作//{// "media_id":MEDIA_ID,// "index":INDEX,// "articles": {// "title": TITLE,// "thumb_media_id": THUMB_MEDIA_ID,// "author": AUTHOR,// "digest": DIGEST,// "show_cover_pic": SHOW_COVER_PIC(0 / 1),// "content": CONTENT,// "content_source_url": CONTENT_SOURCE_URL// }//}string isshow_cover_pic = "";if (this.CheckFengMianShow.Checked){isshow_cover_pic = "1";}else{isshow_cover_pic = "0";}string description = NoHTML(this.tbContent.InnerText.ToString());string postData = "{"media_id":"" + Session["sucaimedia_id"].ToString() +"","index":"0" ,"articles":{"title":"" + this.txttuwen_title.Value.ToString() +"","thumb_media_id":"" + Session["imgmedia_id"].ToString() +"","author":"" + this.txttuwen_author.Value.ToString() +"","digest":"" + this.txtzhaiyao.InnerText.ToString() +"","show_cover_pic":"" + isshow_cover_pic +"","content":"" + description +"","content_source_url":"" + this.txtYuanWenUrl.Text.ToString() +""}}";///修改永久图文素材string url = string.Format("https://api.weixin.qq.com/cgi-bin/material/update_news?access_token={0}", Access_tokento);string jsonres = PostUrl(url, postData);if (jsonres.Contains("errcode")){//使用前需要引用Newtonsoft.json.dll文件JObject jsonObj = JObject.Parse(jsonres);if (jsonObj["errcode"].ToString().Equals("0")){//修改本地数据//保存数据，方便获取列表的时候直接从本地服务器读取WxSuCaiInfo wsc = new WxSuCaiInfo();wsc.SuCaiUrl = Session["fileNameimg"].ToString();//注意，这里保存的图片名称wsc.SuCaiTitle = this.txttuwen_title.Value.ToString();//图文消息的标题wsc.SuCaiDigest = this.txtzhaiyao.InnerText.ToString();//图文消息的摘要wsc.SuCaithumb_media_id = Session["imgmedia_id"].ToString();//图文的消息封面media_idwsc.SuCaiauthor = this.txttuwen_author.Value.ToString();wsc.SuCaishow_cover_pic = isshow_cover_pic;wsc.SuCaicontent = description;wsc.SuCaicontent_source_url = this.txtYuanWenUrl.Text.ToString();wsc.uploadDate = System.DateTime.Now.ToString();//记录当前文件保存图文素材日期时间//修改数据库信息WxSuCaiService wscs = new WxSuCaiService();int num = wscs.UpdateWxSuCaiInfo(Session["sucaimedia_id"].ToString(), wsc);if (num > 0){Session["sucaimedia_id"] = null;Response.Write("<script>alert('图文素材修改成功！');location='WxSuCaiManageList.aspx';</script>");}else{Response.Write("<script>alert('图文素材修改失败！');</script>");}}}}else{//新增图文素材} }需注意：新建图文页面和修改图文页面是公用的一个页面.......

编辑提交按钮和保存按钮是公用的一个按钮.....

精彩专题分享：ASP.NET微信开发教程汇总，欢迎大家学习。

以上就是本文的全部内容，希望对大家的学习有所帮助。以上就是asp.net微信开发中永久素材管理介绍的详细内容，更多请关注小潘博客其它相关文章！
