MongoDB 索引的最佳实践

时间：2020-09-22 08:00:06 作者：重庆seo小潘 来源：
前言大部分开发者都知道加索引会快。但实际过程中，我们常碰到一些疑问困难：我们查询的字段会各种case都有，是不是各个涉及查询的字段都要加索引？复合索引和单字段怎么选择，都加还是每一个的单个字段就好了？加索引有没有副作用？索引都加了，但还是不够

MongoDB 索引的最佳实践前言大部分开发者都知道加索引会快。但实际过程中，我们常碰到一些疑问&困难：我们查询的字段会各种case都有，是不是各个涉及查询的字段都要加索引？复合索引和单字段怎么选择，都加还是每一个的单个字段就好了？加索引有没有副作用？索引都加了，但还是不够快？怎么办？本文尝试去解释索引的基本知识&解答上述的疑问。一、索引究竟是什么东西？大部分开发者接触索引，大概知道索引类似书的目录，你要找到想要的内容，通过目录找到限定的关键字，进而找到对应的章节的pageno，再找到具体的内容。在数据结构里面，最简单的索引实现类似hashmap，通过关键字key，映射到具体的位置，找到具体的内容。但除了hash的方式，还有多种的方式实现索引。（一）索引的多种实现方式以及特色hash / b-tree / b+-treeredis HSET / MongoDB&PostgreSQL / MySQL

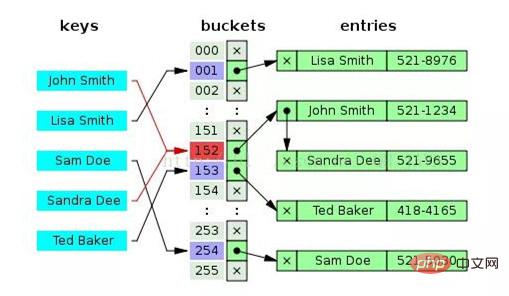

hashmap

MongoDB 索引的最佳实践

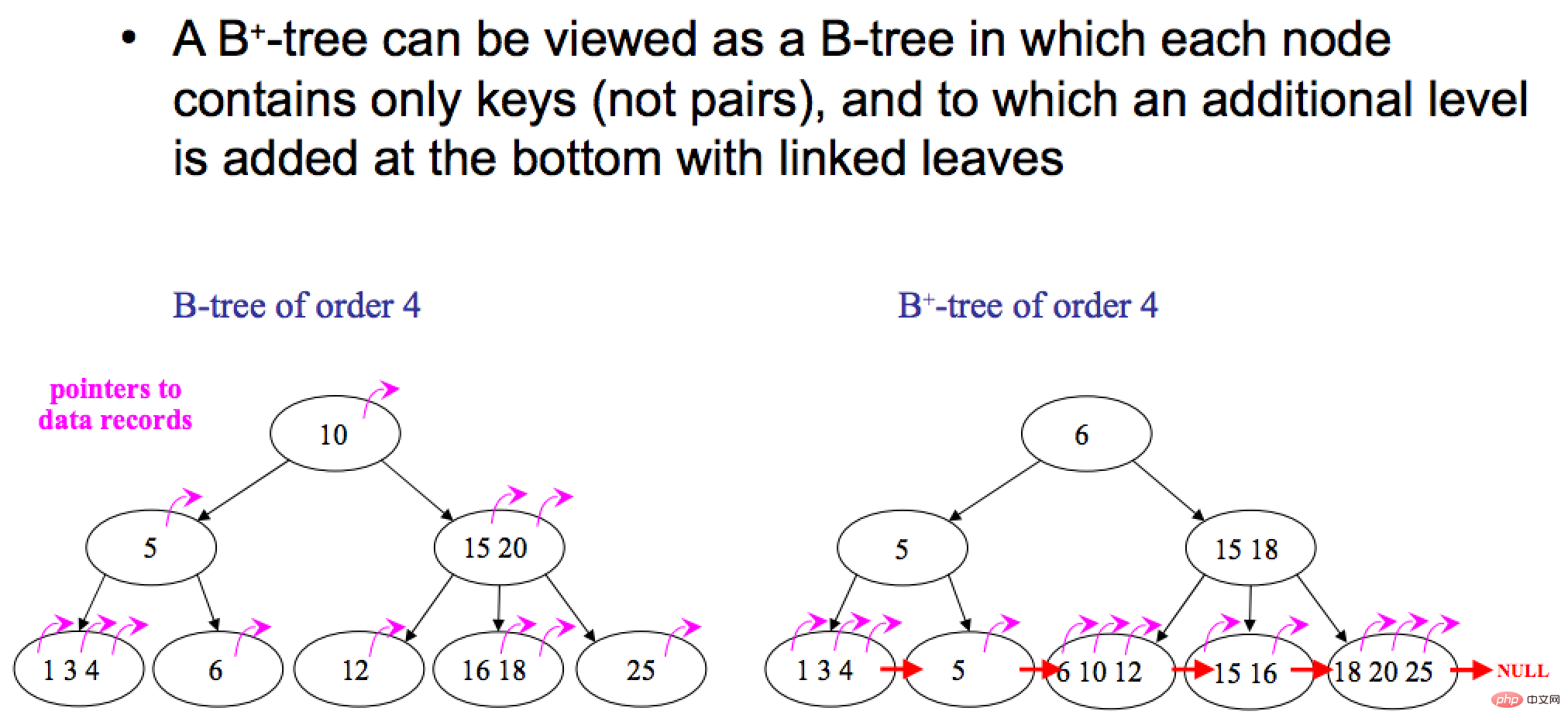

一图见b-tree & b+-tree 差别：

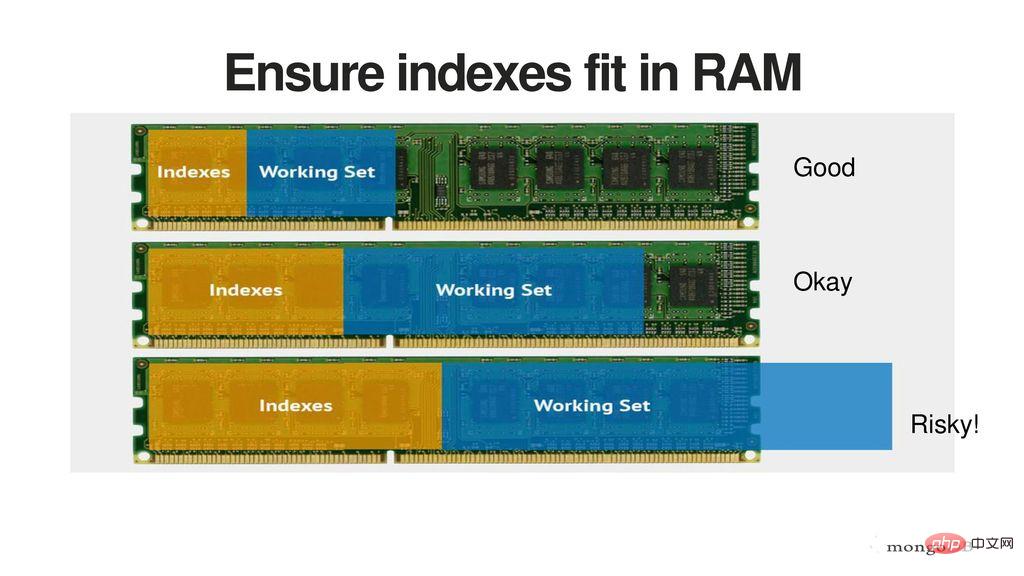

MongoDB 索引的最佳实践b+-tree 叶子存数据，非叶子存索引，不存数据，叶子间有linkb-tree 非叶子可存数据算法查找复杂度上来说：hash 接近O(1)b-treeO(1)~ O(Log(n))更快的平均查找时间，不稳定的查询时间b+ treeO(Log(n)) 连续数据， 查询的稳定性至于为何MongoDB 的实现选择b-tree 而非 b+-tree ？网上多篇文章有阐述，非本文重点。（二）数据&索引的存储MongoDB 索引的最佳实践index尽量存储在内存，data 其次。注意只保留必要的index，内存尽量用在刀刃上。如果index memory 都接近占满memory，那么就很容易读到disk，速度就下来了。（三）知道索引的实现&存储原理后的思考insert/update/delete 会触发rebalance tree，所以，增删改数据，索引会触发修改，性能会有损耗，索引不是越多越好。既然如此，选哪些字段作为索引呢？当查询用到这些条件，怎么办？拿一个最简单的hashmap来讲，为什么复杂度不是O(1)，而是所谓接近 O(1)。因为有key 冲突/重复，DB 去找的时候，key 冲突的数据一大堆的话，还是得轮着继续找。b-tree看键(key)的选择也是如此。因此一个大部分开发经常犯的错就是对没有区分度的key建索引。例如：很多就只有集中类别的 type/status 的 documents count 达几十万以上的collection，通常这种索引没什么帮助。二、复合索引（一）复合索引不是越多越好如果不想多建多余的索引，开发的同事在复合 & 单个字段选择上有时候挺纠结的。根据典型碰到的场景，来做几个实验：这里创建了个loans collection。简化只有100条数据。这个是借贷的表有 _id, userId, status(借贷状态), amount(金额).

db.loans.count()100db.loans.find({ "userId" : "59e022d33f239800129c61c7", "status" : "repayed", }).explain(){"queryPlanner" : {"plannerVersion" : 1,"namespace" : "cashLoan.loans","indexFilterSet" : false,"parsedQuery" : { "$and" : [{"status" : {"$eq" : "repayed"}},{"userId" : {"$eq" : "59e022d33f239800129c61c7"}} ]},"queryHash" : "15D5A9A1","planCacheKey" : "15D5A9A1","winningPlan" : { "stage" : "COLLSCAN", "filter" : {"$and" : [{"status" : {"$eq" : "repayed"}},{"userId" : {"$eq" : "59e022d33f239800129c61c7"}}] }, "direction" : "forward"},"rejectedPlans" : [ ]},"serverInfo" : {"host" : "RMBAP","port" : 27017,"version" : "4.1.11","gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"},"ok" : 1}注意上面 COLLSCAN 全表扫描了,因为没有索引。接下来我们分别建立几个索引。step 1 先建立 {userId:1, status:1}db.loans.createIndex({userId:1, status:1}){"createdCollectionAutomatically" : false,"numIndexesBefore" : 1,"numIndexesAfter" : 2,"ok" : 1}db.loans.find({ "userId" : "59e022d33f239800129c61c7", "status" : "repayed", }).explain(){"queryPlanner" : {"plannerVersion" : 1,"namespace" : "cashLoan.loans","indexFilterSet" : false,"parsedQuery" : { "$and" : [{"status" : {"$eq" : "repayed"}},{"userId" : {"$eq" : "59e022d33f239800129c61c7"}} ]},"queryHash" : "15D5A9A1","planCacheKey" : "BB87F2BA","winningPlan" : { "stage" : "FETCH", "inputStage" : {"stage" : "IXSCAN","keyPattern" : {"userId" : 1,"status" : 1},"indexName" : "userId_1_status_1","isMultiKey" : false,"multiKeyPaths" : {"userId" : [ ],"status" : [ ]},"isUnique" : false,"isSparse" : false,"isPartial" : false,"indexVersion" : 2,"direction" : "forward","indexBounds" : {"userId" : ["["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"],"status" : ["["repayed", "repayed"]"]} }},"rejectedPlans" : [ ]},"serverInfo" : {"host" : "RMBAP","port" : 27017,"version" : "4.1.11","gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"},"ok" : 1}结果：如愿命中 {userId:1, status:1} 作为 winning plan。

step2：再建立个典型的索引 userIddb.loans.createIndex({userId:1}){"createdCollectionAutomatically" : false,"numIndexesBefore" : 2,"numIndexesAfter" : 3,"ok" : 1}db.loans.find({ "userId" : "59e022d33f239800129c61c7", "status" : "repayed", }).explain(){"queryPlanner" : {"plannerVersion" : 1,"namespace" : "cashLoan.loans","indexFilterSet" : false,"parsedQuery" : { "$and" : [{"status" : {"$eq" : "repayed"}},{"userId" : {"$eq" : "59e022d33f239800129c61c7"}} ]},"queryHash" : "15D5A9A1","planCacheKey" : "1B1A4861","winningPlan" : { "stage" : "FETCH", "inputStage" : {"stage" : "IXSCAN","keyPattern" : {"userId" : 1,"status" : 1},"indexName" : "userId_1_status_1","isMultiKey" : false,"multiKeyPaths" : {"userId" : [ ],"status" : [ ]},"isUnique" : false,"isSparse" : false,"isPartial" : false,"indexVersion" : 2,"direction" : "forward","indexBounds" : {"userId" : ["["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"],"status" : ["["repayed", "repayed"]"]} }},"rejectedPlans" : [ {"stage" : "FETCH","filter" : {"status" : {"$eq" : "repayed"}},"inputStage" : {"stage" : "IXSCAN","keyPattern" : {"userId" : 1},"indexName" : "userId_1","isMultiKey" : false,"multiKeyPaths" : {"userId" : [ ]},"isUnique" : false,"isSparse" : false,"isPartial" : false,"indexVersion" : 2,"direction" : "forward","indexBounds" : {"userId" : ["["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"]}} }]},"serverInfo" : {"host" : "RMBAP","port" : 27017,"version" : "4.1.11","gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"},"ok" : 1}留意到 DB 检测到 {userId:1, status:1} 为更优执行的方案.db.loans.find({ "userId" : "59e022d33f239800129c61c7" }).explain(){"queryPlanner" : {"plannerVersion" : 1,"namespace" : "cashLoan.loans","indexFilterSet" : false,"parsedQuery" : { "userId" : {"$eq" : "59e022d33f239800129c61c7" }},"queryHash" : "B1777DBA","planCacheKey" : "1F09D68E","winningPlan" : { "stage" : "FETCH", "inputStage" : {"stage" : "IXSCAN","keyPattern" : {"userId" : 1},"indexName" : "userId_1","isMultiKey" : false,"multiKeyPaths" : {"userId" : [ ]},"isUnique" : false,"isSparse" : false,"isPartial" : false,"indexVersion" : 2,"direction" : "forward","indexBounds" : {"userId" : ["["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"]} }},"rejectedPlans" : [ {"stage" : "FETCH","inputStage" : {"stage" : "IXSCAN","keyPattern" : {"userId" : 1,"status" : 1},"indexName" : "userId_1_status_1","isMultiKey" : false,"multiKeyPaths" : {"userId" : [ ],"status" : [ ]},"isUnique" : false,"isSparse" : false,"isPartial" : false,"indexVersion" : 2,"direction" : "forward","indexBounds" : {"userId" : ["["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"],"status" : ["[MinKey, MaxKey]"]}} }]},"serverInfo" : {"host" : "RMBAP","port" : 27017,"version" : "4.1.11","gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"},"ok" : 1}留意到 DB 检测到 {userId:1} 为更优执行的方案，嗯~，如我们所料.db.loans.find({ "status" : "repayed" }).explain(){"queryPlanner" : {"plannerVersion" : 1,"namespace" : "cashLoan.loans","indexFilterSet" : false,"parsedQuery" : { "status" : {"$eq" : "repayed" }},"queryHash" : "E6304EB6","planCacheKey" : "7A94191B","winningPlan" : { "stage" : "COLLSCAN", "filter" : {"status" : {"$eq" : "repayed"} }, "direction" : "forward"},"rejectedPlans" : [ ]},"serverInfo" : {"host" : "RMBAP","port" : 27017,"version" : "4.1.11","gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"},"ok" : 1}有趣的部分：status不命中索引，全表扫描接下来的步骤，加个sort :db.loans.find({ "userId" : "59e022d33f239800129c61c7" }).sort({status:1}).explain(){"queryPlanner" : {"plannerVersion" : 1,"namespace" : "cashLoan.loans","indexFilterSet" : false,"parsedQuery" : { "userId" : {"$eq" : "59e022d33f239800129c61c7" }},"queryHash" : "F5ABB1AA","planCacheKey" : "764CBAA8","winningPlan" : { "stage" : "FETCH", "inputStage" : {"stage" : "IXSCAN","keyPattern" : {"userId" : 1,"status" : 1},"indexName" : "userId_1_status_1","isMultiKey" : false,"multiKeyPaths" : {"userId" : [ ],"status" : [ ]},"isUnique" : false,"isSparse" : false,"isPartial" : false,"indexVersion" : 2,"direction" : "forward","indexBounds" : {"userId" : ["["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"],"status" : ["[MinKey, MaxKey]"]} }},"rejectedPlans" : [ {"stage" : "SORT","sortPattern" : {"status" : 1},"inputStage" : {"stage" : "SORT_KEY_GENERATOR","inputStage" : {"stage" : "FETCH","inputStage" : {"stage" : "IXSCAN","keyPattern" : {"userId" : 1},"indexName" : "userId_1","isMultiKey" : false,"multiKeyPaths" : {"userId" : [ ]},"isUnique" : false,"isSparse" : false,"isPartial" : false,"indexVersion" : 2,"direction" : "forward","indexBounds" : {"userId" : ["["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"]}}}} }]},"serverInfo" : {"host" : "RMBAP","port" : 27017,"version" : "4.1.11","gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"},"ok" : 1}（二）其他尝试有趣的部分：status 不命中索引db.loans.find({ "status" : "repayed","userId" : "59e022d33f239800129c61c7", }).explain(){"queryPlanner" : {"plannerVersion" : 1,"namespace" : "cashLoan.loans","indexFilterSet" : false,"parsedQuery" : { "$and" : [{"status" : {"$eq" : "repayed"}},{"userId" : {"$eq" : "59e022d33f239800129c61c7"}} ]},"queryHash" : "15D5A9A1","planCacheKey" : "1B1A4861","winningPlan" : { "stage" : "FETCH", "inputStage" : {"stage" : "IXSCAN","keyPattern" : {"userId" : 1,"status" : 1},"indexName" : "userId_1_status_1","isMultiKey" : false,"multiKeyPaths" : {"userId" : [ ],"status" : [ ]},"isUnique" : false,"isSparse" : false,"isPartial" : false,"indexVersion" : 2,"direction" : "forward","indexBounds" : {"userId" : ["["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"],"status" : ["["repayed", "repayed"]"]} }},"rejectedPlans" : [ {"stage" : "FETCH","filter" : {"status" : {"$eq" : "repayed"}},"inputStage" : {"stage" : "IXSCAN","keyPattern" : {"userId" : 1},"indexName" : "userId_1","isMultiKey" : false,"multiKeyPaths" : {"userId" : [ ]},"isUnique" : false,"isSparse" : false,"isPartial" : false,"indexVersion" : 2,"direction" : "forward","indexBounds" : {"userId" : ["["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"]}} }]},"serverInfo" : {"host" : "RMBAP","port" : 27017,"version" : "4.1.11","gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"},"ok" : 1}命中索引，跟query的各个字段顺序不相关，如我们猜测。有趣部分再来， 我们删掉索引{userId:1}db.loans.dropIndex({"userId":1}){ "nIndexesWas" : 3, "ok" : 1 }db.loans.find({"userId" : "59e022d33f239800129c61c7", }).explain(){"queryPlanner" : {"plannerVersion" : 1,"namespace" : "cashLoan.loans","indexFilterSet" : false,"parsedQuery" : { "userId" : {"$eq" : "59e022d33f239800129c61c7" }},"queryHash" : "B1777DBA","planCacheKey" : "5776AB9C","winningPlan" : { "stage" : "FETCH", "inputStage" : {"stage" : "IXSCAN","keyPattern" : {"userId" : 1,"status" : 1},"indexName" : "userId_1_status_1","isMultiKey" : false,"multiKeyPaths" : {"userId" : [ ],"status" : [ ]},"isUnique" : false,"isSparse" : false,"isPartial" : false,"indexVersion" : 2,"direction" : "forward","indexBounds" : {"userId" : ["["59e022d33f239800129c61c7", "59e022d33f239800129c61c7"]"],"status" : ["[MinKey, MaxKey]"]} }},"rejectedPlans" : [ ]},"serverInfo" : {"host" : "RMBAP","port" : 27017,"version" : "4.1.11","gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"},"ok" : 1}DB 执行分析器觉得索引{userId:1, status:1} 能更优,没有命中复合索引，这个是因为status不是leading field。db.loans.find({ "status" : "repayed" }).explain(){"queryPlanner" : {"plannerVersion" : 1,"namespace" : "cashLoan.loans","indexFilterSet" : false,"parsedQuery" : { "status" : {"$eq" : "repayed" }},"queryHash" : "E6304EB6","planCacheKey" : "7A94191B","winningPlan" : { "stage" : "COLLSCAN", "filter" : {"status" : {"$eq" : "repayed"} }, "direction" : "forward"},"rejectedPlans" : [ ]},"serverInfo" : {"host" : "RMBAP","port" : 27017,"version" : "4.1.11","gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"},"ok" : 1}再换个角度sort 一遍， 与前面query & sort互换，之前是：db.loans.find({userId:1}).sort({ "status" : "repayed" })看看有啥不一样？db.loans.find({ "status" : "repayed" }).sort({userId:1}).explain(){"queryPlanner" : {"plannerVersion" : 1,"namespace" : "cashLoan.loans","indexFilterSet" : false,"parsedQuery" : { "status" : {"$eq" : "repayed" }},"queryHash" : "56EA6313","planCacheKey" : "2CFCDA7F","winningPlan" : { "stage" : "FETCH", "filter" : {"status" : {"$eq" : "repayed"} }, "inputStage" : {"stage" : "IXSCAN","keyPattern" : {"userId" : 1,"status" : 1},"indexName" : "userId_1_status_1","isMultiKey" : false,"multiKeyPaths" : {"userId" : [ ],"status" : [ ]},"isUnique" : false,"isSparse" : false,"isPartial" : false,"indexVersion" : 2,"direction" : "forward","indexBounds" : {"userId" : ["[MinKey, MaxKey]"],"status" : ["[MinKey, MaxKey]"]} }},"rejectedPlans" : [ ]},"serverInfo" : {"host" : "RMBAP","port" : 27017,"version" : "4.1.11","gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"},"ok" : 1}如猜测，命中索引。再来玩玩，确认下leading filed试验：db.loans.dropIndex("userId_1_status_1"){ "nIndexesWas" : 2, "ok" : 1 }db.loans.getIndexes()[{"v" : 2,"key" : { "id" : 1},"name" : "id_","ns" : "cashLoan.loans"}]db.loans.createIndex({status:1, userId:1}){"createdCollectionAutomatically" : false,"numIndexesBefore" : 1,"numIndexesAfter" : 2,"ok" : 1}db.loans.getIndexes()[{"v" : 2,"key" : { "id" : 1},"name" : "id_","ns" : "cashLoan.loans"},{"v" : 2,"key" : { "status" : 1, "userId" : 1},"name" : "status_1_userId_1","ns" : "cashLoan.loans"}]db.loans.find({ "status" : "repayed" }).explain(){"queryPlanner" : {"plannerVersion" : 1,"namespace" : "cashLoan.loans","indexFilterSet" : false,"parsedQuery" : { "status" : {"$eq" : "repayed" }},"queryHash" : "E6304EB6","planCacheKey" : "7A94191B","winningPlan" : { "stage" : "FETCH", "inputStage" : {"stage" : "IXSCAN","keyPattern" : {"status" : 1,"userId" : 1},"indexName" : "status_1_userId_1","isMultiKey" : false,"multiKeyPaths" : {"status" : [ ],"userId" : [ ]},"isUnique" : false,"isSparse" : false,"isPartial" : false,"indexVersion" : 2,"direction" : "forward","indexBounds" : {"status" : ["["repayed", "repayed"]"],"userId" : ["[MinKey, MaxKey]"]} }},"rejectedPlans" : [ ]},"serverInfo" : {"host" : "RMBAP","port" : 27017,"version" : "4.1.11","gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"},"ok" : 1}db.loans.getIndexes()[{"v" : 2,"key" : { "id" : 1},"name" : "id_","ns" : "cashLoan.loans"},{"v" : 2,"key" : { "status" : 1, "userId" : 1},"name" : "status_1_userId_1","ns" : "cashLoan.loans"}]db.loans.find({"userId" : "59e022d33f239800129c61c7", }).explain(){"queryPlanner" : {"plannerVersion" : 1,"namespace" : "cashLoan.loans","indexFilterSet" : false,"parsedQuery" : { "userId" : {"$eq" : "59e022d33f239800129c61c7" }},"queryHash" : "B1777DBA","planCacheKey" : "5776AB9C","winningPlan" : { "stage" : "COLLSCAN", "filter" : {"userId" : {"$eq" : "59e022d33f239800129c61c7"} }, "direction" : "forward"},"rejectedPlans" : [ ]},"serverInfo" : {"host" : "RMBAP","port" : 27017,"version" : "4.1.11","gitVersion" : "1b8a9f5dc5c3314042b55e7415a2a25045b32a94"},"ok" : 1}看完这个试验，明白了 {userId:1, status:1} vs {status:1,userId:1} 的差别了吗？

PS：这个case 里面其实status 区分度不高，这里只是作为实例展示。三、总结：注意使用上、使用频率上、区分高的/常用的在前面；如果需要减少索引以节省memory/提高修改数据的性能的话，可以保留区分度高，常用的，去除区分度不高，不常用的索引。学会用explain（）验证分析性能：DB 一般都有执行器优化的分析，MySQL & MongoDB 都是 用explain 来做分析。语法上MySQL :

explain your_sql

MongoDB:

yoursql.explain()

总结典型：理想的查询是结合explain 的指标，他们通常是多个的混合:IXSCAN: 索引命中；Limit: 带limit；Projection :相当于非 select * ；Docs Size less is better；Docs Examined less is better ；nReturned=totalDocsExamined=totalKeysExamined ；SORT in index ：sort 也是命中索引，否则，需要拿到数据后，再执行一遍排序；Limit Array elements ： 限定数组返回的条数，数组也不应该太多数据，否则schema 设计不合理。彩蛋文末，还有最开头1个问题没回答：如果我的索引改加的都加了，还不够快,怎么办？留个悬念，之后再写一篇。

更多PHP相关技术文章，请访问PHP教程栏目进行学习！以上就是MongoDB 索引的最佳实践的详细内容，更多请关注小潘博客其它相关文章！
